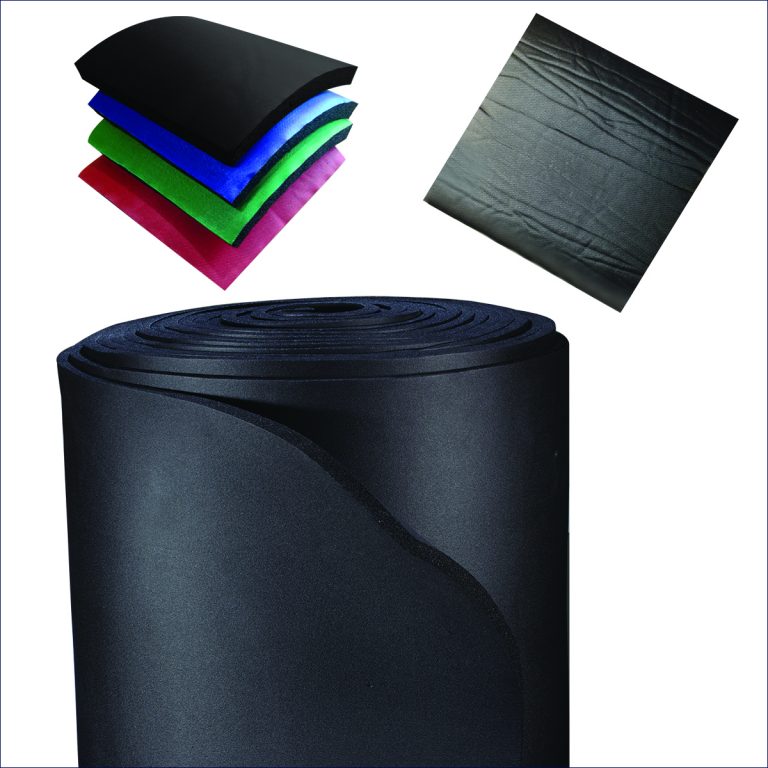

NBR Rolls and Sheets
United Insulation Pakistan®️ NBR Flexible Elastomeric Rubber Insulation Rolls and Sheets are closed cell foam structures with a non-porous composition that offers high thermal efficiency and protection from imminent condensation problems and helps as in sound absorption. Depending on the requirements of the market, this product can be coated with different types of foils and have a factory-applied self-adhesive backing. The installation time is reduced by more than 40% due to the ease in cutting as well as quick adhesion of the material.

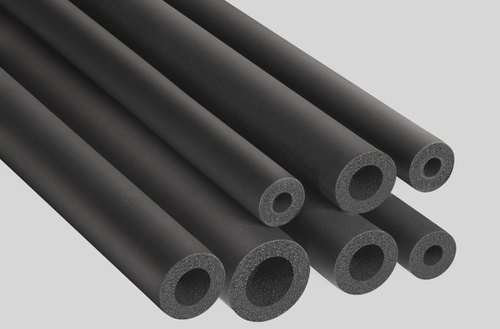

United Insulation Pakistan®️ NBR Rolls and Sheets come in handy where United Insulation Pakistan®️ (NBR) Nitrile Tubes cannot be used on pipes with big diameter. Other applications include ventilation ducts, tanks, reservoirs and engine rooms as it provides sound and thermal protection. Not only are they environmentally friendly, but they also don’t pose any harm to human health as it has zero Ozone Depletion Potential (ODP), Global Warming Potential (GWP) of less than five and a low Volatile Organic Compound (VOC) of less than 6 µg/m2/hr in 24 hours. United Insulation Pakistan®️ NBR Rolls and Sheets also comply with LEED requirements.
Applications
- Big diameter pipes (where tubes can’t be used)
- Ventilation ducts
- Tanks and reservoirs
- Engine rooms (as sound attenuates)
- Fittings (valves, flanges, bends)
In order to install United Insulation Pakistan®️ NBR rolls & sheets in a professional manner, please drop an email at unitedinsulation@gmail.com to receive the installation handbook.
Properties
- Fire rated “CLASS O” as per BS 476 Parts 6 & 7
- Very low water vapor permeance (0 perms)
- High water vapor diffusion factor (> 17,000)
- Very low water absorption rate (0.06% by volume)
- High thermal efficiency (λ24˚ C = 0.033 W/mK; λ46˚ C = 0.035 W/mK)
- Wide temperature range (from -50˚ C to +105˚ C)
- Chemical resistance – resistant to most chemicals (sodium, silica, fluoride, chloride, etc.)
- Antibacterial & antifungal
- Environmental friendly – ODP = 0 and GWP < 5
- Very low VOC emission level ( < 6 µg/m2/hr in 24 hours)
- Sound absorption properties
- Easy and fast to install
Required Accessories
- United Insulation Pakistan®️ Glue
- United Insulation Pakistan®️ NBR Foam Tape
